All You Need to Know About Investment Casting

Investment casting is a precise manufacturing process that shapes a disposable ceramic mold. Manufacturers create a wax pattern designed to match the exact shape of the final cast. Once the ceramic shell is formed, workers coat the pattern with refractory ceramic material. This hardened shell becomes an expandable investment mold, into which they pour the molten material to cool.

Various Process in the Investment Casting Process

Step 1: Metal Die Construction

The casting process destroys the wax patterns, so manufacturers need to create a new pattern for each casting. Unless they use investment casting for very small materials, such as in jewelry, they must produce a mold or die for each item. Additionally, engineers calculate the size of the die by considering shrinkage to design the product accurately.

Step 2: Wax Pattern Production

The number of wax patterns equals the number of casts to be produced, with each individual cast requiring a new wax pattern. In this process, the manufacturer injects hot water into the mold. Additionally, they may require cores because the resulting wax pattern serves as a replica of the desired final product.

Step 3: Creation of Mold

The team attaches the gating system to the wax model, connecting smaller wax pieces to the central wax gating system. A cup is joined to the central wax system, forming runner bars that introduce molten metal into the molds.

Next, they dip the assembled pattern in refractory slurry, allowing it to dry and harden. They then turn the hardened ceramic mold upside down and heat it until the wax melts and drains away, leaving behind a hollow ceramic shell.

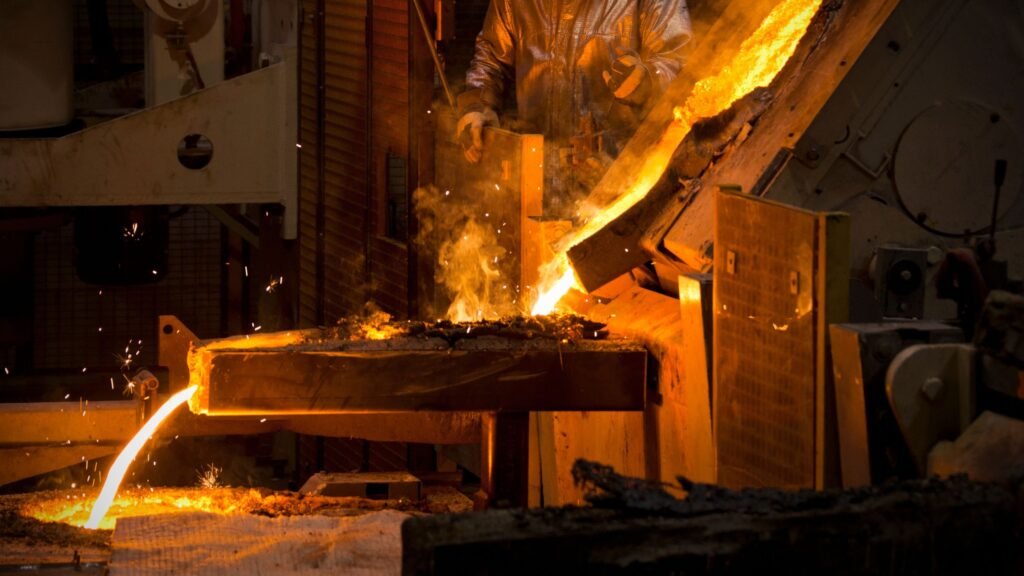

Step 4: Pouring

In this process, manufacturers heat the ceramic to 1000-2000°F, which strengthens the mold and eliminates any leftover water from the mold material. Additionally, the pre-heated metal flows through thin sections which creates a casting with improved dimension. Where the mould and casting will cool off and shrink in size together.

Step 5: Cooling

After pouring the mold, the metal cools and solidifies. The cooling time for the mold in its solid state depends on the material being cast and the thickness of the cast.

Step 6: Shakeout

Once the casing and ceramic mold break down, workers remove the casting. They manually break the ceramic mold or use water jets for this process. Afterwards, they separate the individual castings from the gating system tree using methods such as manual impact, sawing, cutting, or cold breaking with liquid nitrogen.

Step 7:Finishing

Workers employ operations like grinding and sandblasting to smooth the parts at the gates and remove imperfections. Depending on the type of metal cast, they might use heat treating on the hardened final part.

When Investment Casting Must be Used

Due to its complex nature, labour requirements and casting is an expensive process but the benefits usually outweigh the cost. Mostly, any meta can be cast using the cast but they are normally small but the process outweighs 75 lbs or more.

It is capable of casting complex parts with excellent cast surface finishes. The production allows casting with a 90-degree angle to be designed with no shrinkage allowance built-in. This investment process usually includes investment casting, and cast surface finishes and generally does not need to remove components from ceramic.

For high-volume orders, manufacturers save time and labor by eliminating or reducing secondary processes, which helps offset new costs for tooling. Generally, they do not make small casting runs for investment; however, if the quantity exceeds 25, they consider it an investment.

Consideration While Opting for Investment Casting

• Cost: For quantity it might be more expensive than other methods if you have applications or SLA printed. Typically, manufacturers do not see initial costs as a major concern; they primarily involve assembling various tools, which, while not insignificant, can be easily offset by the reduced need for machining or fabrication.

• Size: The casts can be achieved in several shapes and sizes as there is an upper limit for ranges which is less than other shape technology like sand castings.
• Time consumption: The multi-step investment casting process is usually more time-consuming than other processes. However, this process can be shorter than other alternatives.

Conclusion

In conclusion, most material and design decisions with metal experts can drive the best decision. To learn more about the investment casting process visit Texas Technology.  Here at Texas technology, we make sure that all the questions and doubts of our clients are answered.

Frequently Asked Questions(FAQs)

• What are the advantages of investment casting?

It is a popular manufacturing process which produces high accuracy. It produces high accuracy with detailed castings. This is cost-effective for small to medium production quantities, especially for complex parts.

• What are the limitations of this process?

Production cycles, cost, internal cavities and size and depth.

• What are the tolerances for investment castings?

Tolerances are used to optimise economic efficiency between the customer and the casting manufacturer. It should be specified with closer than necessary.

• How is the wax pattern assembled?

The team attaches wax patterns to the sprue tree, allowing molten metal to flow into every part of the cast component.

• How does investment casting work?

In the investment casting process, manufacturers attach wax patterns to a sprue to create a tree, which is then used to cast the components through the gated system of the tree.
